Fault Tree Analysis – Phân tích cây lỗi (FTA) là gì?
Trong lĩnh vực quản lý sản xuất và vận hành, việc phòng ngừa và kiểm soát các sự cố là yếu tố sống còn để đảm bảo hiệu suất hoạt động của doanh nghiệp. Một trong những công cụ nổi bật giúp thực hiện điều này là phân tích cây lỗi FTA.
Bài viết sau sẽ giúp bạn khám phá chi tiết về công cụ này, từ khái niệm cơ bản đến cách áp dụng thực tế, dưới lăng kính của một chuyên gia quản lý sản xuất.
I. Phân tích cây lỗi FTA là gì?
Phân tích cây lỗi FTA (Fault Tree Analysis) là một phương pháp đồ họa sử dụng logic Boolean để phân tích nguyên nhân gốc rễ của các sự cố trong hệ thống. Công cụ này bắt đầu từ một sự cố không mong muốn ở cấp độ hệ thống (gọi là sự kiện hàng đầu) và lần ngược lại để tìm ra các yếu tố cơ bản gây ra sự cố đó. Bằng cách xây dựng một sơ đồ cây với các biểu tượng sự kiện và cổng logic, FTA giúp hình dung rõ ràng mối quan hệ giữa các thành phần, từ đó hỗ trợ doanh nghiệp xác định và giảm thiểu rủi ro.
Phương pháp này được phát triển lần đầu tiên vào năm 1962 bởi H. Watson và A. Mearns tại phòng thí nghiệm Bell cho lực lượng không quân Mỹ, sau đó được Boeing áp dụng rộng rãi. Ngày nay, phân tích cây lỗi FTA không chỉ phổ biến trong hàng không vũ trụ, ô tô, hóa chất, hạt nhân mà còn được sử dụng hiệu quả trong quản lý sản xuất và vận hành tại Việt Nam.
So với Phân tích tác động và chế độ lỗi (FMEA), FTA tập trung sâu vào một sự cố cụ thể ở cấp hệ thống, trong khi FMEA xem xét toàn bộ các lỗi có thể xảy ra bất kể mức độ nghiêm trọng. Điều này khiến FTA trở thành lựa chọn lý tưởng cho các hệ thống phức tạp cần phân tích chi tiết.
II. Khi nào nên sử dụng phân tích cây lỗi FTA?
Phân tích cây lỗi FTA là công cụ không thể thiếu khi doanh nghiệp cần đánh giá rủi ro ở cấp độ hệ thống. Dưới đây là một số tình huống phù hợp để áp dụng:
Phòng ngừa sự cố trước khi xảy ra: FTA giúp xác định nguyên nhân tiềm ẩn, từ đó xây dựng kế hoạch quản lý chủ động.
Hệ thống phức tạp: Với các dây chuyền sản xuất hoặc quy trình hiện đại, FTA cung cấp cái nhìn trực quan và logic về các điểm yếu.
Kết hợp với FMEA: FTA có thể bổ sung cho FMEA để tối ưu hóa quy trình quản lý rủi ro.
Các chuyên gia quản lý sản xuất luôn khuyên rằng FTA đặc biệt hữu ích khi doanh nghiệp muốn giảm thiểu chi phí sửa chữa và thời gian gián đoạn trong vận hành. Việc áp dụng FTA sẽ giúp phát hiện sớm các lỗi tiềm ẩn trong hệ thống điện hoặc quy trình trong nhà máy sản xuất, từ đó nâng cao độ tin cậy và hiệu quả vận hành.
III. Các thành phần chính trong phân tích cây lỗi FTA
Để hiểu rõ cách hoạt động của phân tích cây lỗi FTA, chúng ta cần làm quen với các biểu tượng và thành phần chính. Các biểu tượng này được chia thành hai nhóm: biểu tượng sự kiện và biểu tượng cổng.

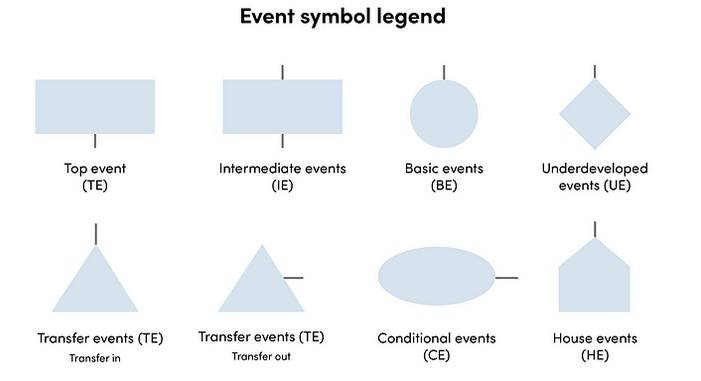

1. Biểu tượng sự kiện
Sự kiện hàng đầu (Top Event – TE): Điểm khởi đầu của cây lỗi, đại diện cho sự cố không mong muốn cần phân tích (ví dụ: dây chuyền sản xuất ngừng hoạt động).
Sự kiện trung gian (Intermediate Events – IE): Những sự cố góp phần gây ra sự kiện hàng đầu, có thể tiếp tục được phân tích sâu hơn.
Sự kiện cơ bản (Basic Events – BE): Nguyên nhân gốc rễ, thường là lỗi phần cứng, lỗi con người hoặc điều kiện môi trường, nằm ở đáy cây.
Sự kiện chưa phát triển (Underdeveloped Events – UE): Những sự cố thiếu dữ liệu, cần nghiên cứu thêm.
Sự kiện chuyển tiếp (Transfer Events – TE): Dùng để mở rộng cây lỗi khi sơ đồ quá dài, bao gồm chuyển vào (Transfer-in) và chuyển ra (Transfer-out).
Sự kiện điều kiện (Conditional Events – CE): Điều kiện đi kèm với cổng logic, ảnh hưởng đến kết quả.
Sự kiện nhà (House Events – HE): Cho phép bật/tắt một phần cây lỗi để kiểm tra các kịch bản quản lý khác nhau.

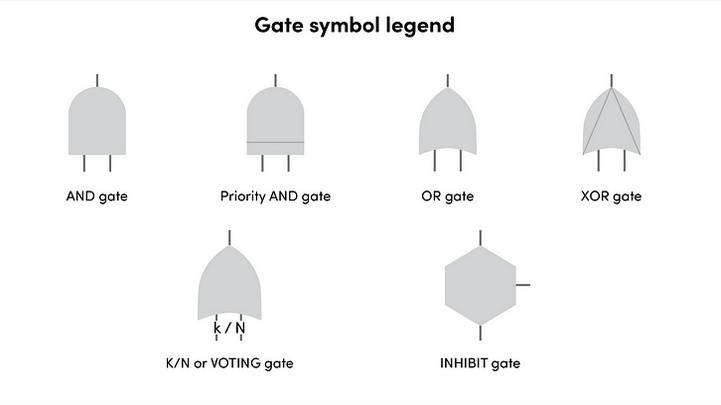

2. Biểu tượng cổng
Cổng AND: Sự cố xảy ra khi tất cả các điều kiện đầu vào đều đúng (ví dụ: cả lỗi điện và lỗi quy trình cùng xuất hiện).
Cổng OR: Sự cố xảy ra khi ít nhất một điều kiện đầu vào xảy ra (ví dụ: lỗi do ngắn mạch hoặc do sai thao tác).
Cổng Priority AND: Sự cố xảy ra khi các điều kiện đầu vào đúng theo thứ tự nhất định.
Cổng Exclusive OR: Sự cố xảy ra khi chỉ một trong hai điều kiện đầu vào xảy ra, không phải cả hai.
Cổng Inhibit: Sự cố xảy ra khi điều kiện đầu vào đúng và điều kiện đi kèm được thỏa mãn.
Những biểu tượng này giúp tạo ra một sơ đồ trực quan, dễ hiểu, đặc biệt khi áp dụng trong các hệ thống quản lý sản xuất tại Việt Nam.
IV. Hướng dẫn thực hiện phân tích cây lỗi FTA
Dưới đây là các bước chi tiết để thực hiện phân tích cây lỗi FTA, dựa trên kinh nghiệm thực tế trong ngành quản lý:

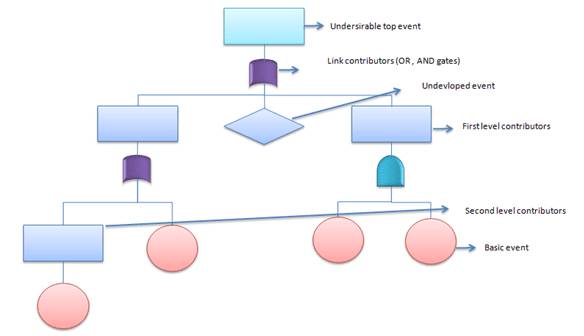

·Xác định sự cố chính: Chọn sự kiện hàng đầu cần phân tích, ví dụ: “Dây chuyền sản xuất bị gián đoạn”.
·Tìm các nguyên nhân cấp một: Sử dụng dữ liệu kỹ thuật để xác định các yếu tố trực tiếp (như lỗi cơ khí hoặc quy trình).
·Kết nối bằng cổng logic: Sử dụng cổng AND hoặc OR để thể hiện mối quan hệ giữa các nguyên nhân.
·Phân tích cấp hai và tiếp theo: Tiếp tục chia nhỏ đến khi tìm ra các sự kiện cơ bản.
·Xác định tập cắt tối thiểu: Đây là tập hợp các sự kiện cơ bản đủ để gây ra sự cố hàng đầu.
·Đánh giá và hoàn thiện: Kiểm tra sơ đồ và tính xác suất xảy ra của các sự kiện cơ bản.
Ví dụ, để tính xác suất, ta có thể dùng công thức đơn giản: Xác suất sự kiện hàng đầu = Xác suất sự kiện A × Xác suất sự kiện B (với cổng AND).
Quy trình này đòi hỏi sự hiểu biết sâu sắc về hệ thống, điều mà các chuyên gia quản lý tại Việt Nam thường đạt được qua kinh nghiệm thực tiễn.
V. Ví dụ thực tế: Ứng dụng FTA trong quản lý
Hãy tưởng tượng một vụ gián đoạn sản xuất xảy ra tại dây chuyền sản xuất cáp của công ty XYZ. Nhóm quản lý sử dụng phân tích cây lỗi FTA để phân tích:
Sự kiện hàng đầu: Gián đoạn sản xuất tại tổ máy 1.
Nguyên nhân cấp một: Nguồn vật liệu không đạt tiêu chuẩn, ngắn mạch, sử dụng quy trình không phù hợp.
Nguyên nhân cấp hai: Rò rỉ nguyên liệu, thao tác sai, nguồn nhiệt bất thường.
Kết luận: Sự cố có thể xảy ra do kết hợp rò rỉ nguyên liệu và nguồn nhiệt từ thiết bị.
VI. Ưu điểm và nhược điểm của phân tích cây lỗi FTA
1. Ưu điểm
Hình dung trực quan: Giúp đội ngũ quản lý dễ dàng theo dõi nguyên nhân.
Tập trung vào yếu tố quan trọng: Nhấn mạnh các thành phần dễ gây lỗi.
Phân tích toàn diện: Bao gồm cả lỗi con người, không chỉ lỗi kỹ thuật.
Hỗ trợ định lượng: Tính toán xác suất để ưu tiên hành động.
2. Nhược điểm
Phức tạp với hệ thống lớn: Số lượng cổng và sự kiện có thể quá nhiều.
Giới hạn một sự kiện: Chỉ phân tích một sự cố hàng đầu.
Yêu cầu kinh nghiệm: Cần chuyên gia hiểu rõ cổng logic.
Bỏ qua yếu tố thời gian: Khó phản ánh độ trễ hoặc chu kỳ.
Dù có nhược điểm, với cách tiếp cận đúng đắn, phân tích cây lỗi FTA vẫn là công cụ mạnh mẽ trong quản lý.
VII. Tích hợp phân tích cây lỗi FTA với giải pháp MES SmartTrack của Vietsoft
Bạn có bao giờ tự hỏi làm thế nào để theo dõi và tối ưu hóa hiệu suất sản xuất một cách thông minh chưa? Hãy tưởng tượng một giải pháp giúp bạn giám sát toàn diện dây chuyền sản xuất, phát hiện sớm các sự cố tiềm ẩn. Bí mật nằm ở hệ thống giám sát sản xuất MES SmartTrack của Vietsoft – giải pháp tiên phong tại Việt Nam. Khi kết hợp với phân tích cây lỗi FTA, MES SmartTrack mang đến:
Giám sát thời gian thực: Phát hiện và phân tích rủi ro ngay khi chúng xuất hiện.
Tự động hóa quy trình: Cảnh báo và đề xuất hành động dựa trên dữ liệu FTA.
Phân tích hiệu suất: Đo lường KPIs để cải thiện liên tục.
Báo cáo chi tiết: Lưu trữ dữ liệu FTA để hỗ trợ ra quyết định và tuân thủ quy định.
Phân tích cây lỗi FTA là chìa khóa để nâng cao độ tin cậy và hiệu quả trong quản lý sản xuất. Với cách tiếp cận từ trên xuống, công cụ này không chỉ giúp phát hiện nguyên nhân gốc rễ mà còn hỗ trợ doanh nghiệp xây dựng chiến lược quản lý rủi ro hiệu quả. Kết hợp với giải pháp MES SmartTrack của Vietsoft, bạn có thể đưa quy trình sản xuất và quản lý lên một tầm cao mới. Hãy bắt đầu hành trình tối ưu hóa ngay hôm nay!
